Transportation and storage system GSK 5000
Model | GSK 5000 |
Number of tanks | 80 |
Location of tanks | vertical |
Type of tanks | CNG-3 |
One tank capacity, l | 210 |
Module capacity, l | 16800 |
Methane capacity at 15С at 250 atm., Нm3 | 5090 |
Module dimensions Length/Width/Height, mm | 6860/2500/2585 |
Module weight without gas, kg | 16344 |
Full module weight with gas, kg | 19854 |

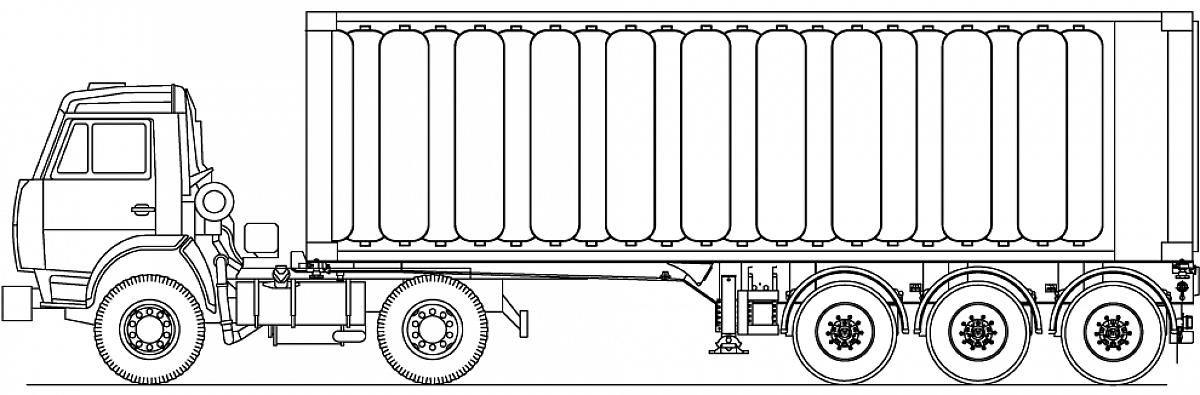

The system consists of metal composite high-pressure cylinders (250 bar) for compressed natural gas, mounted in a steel container. It is placed on a semi-trailer or truck chassis. For refueling, GSK 5000 is connected to a gas-filling station (with an emptying ratio of 65% of the total volume) or to a compressor unit, which allows an increase in emptying rate to 95%.
