Transportation and storage system GSK 3000
| GSK 3000 | |
|---|---|
Number of tanks | 55 |
Location of tanks | vertical |
Type of tanks | CNG-3 |
One tank capacity, l | 191 |
Module capacity, l | 10505 |
Methane capacity at 15oС and at 250 atm., Нm3 | 3180 |
Module dimensions Length/Width/Height, mm | 5500/2500/2385 |
Module weight without gas, kg | 12290 |
Full module weight with gas, kg | 14655 |

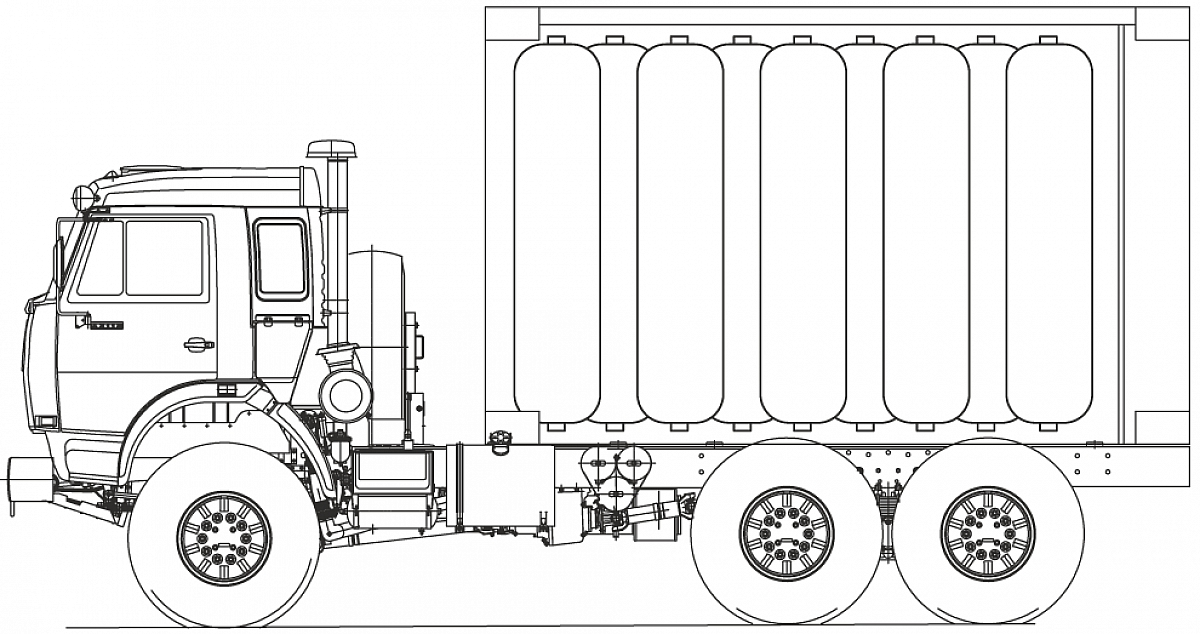

The system consists of high pressure metal composite cylinders (250 bar) for compressed natural gas, mounted vertically in a steel container. This version is designed specifically for installation on an onboard tractor KAMAZ-43118-24 (6x6), in order to ensure refueling equipment in hard-to-reach areas, it is also possible to install on a semi-trailer or chassis of another truck. For refueling, TSS is connected to a gas-filling station (with an emptying ratio of 65% of the total volume) or to a compressor unit allowing an increase in emptying rate to 95%.
